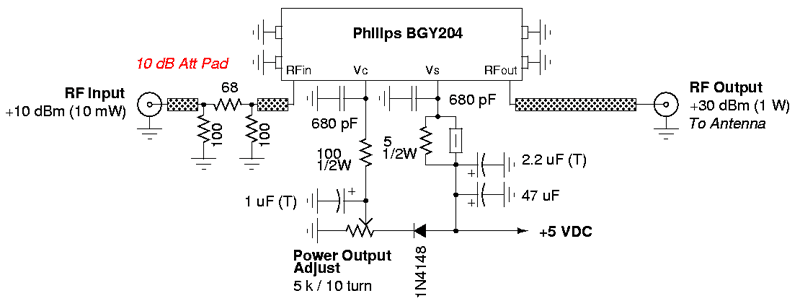

Portable GSM900 Cellular Phone Jammer Circuit Diagram Emits a carrier that sweeps the 925-960 MHz cellular tower transmitter band (handset receive band)

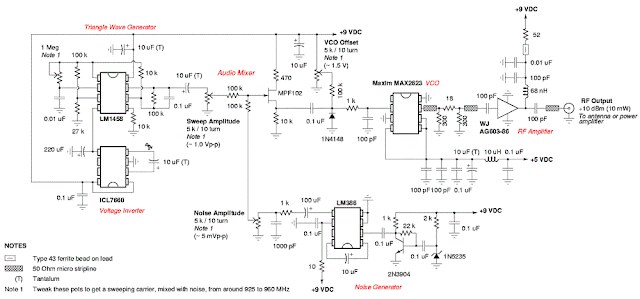

GSM900 Cellular Phone Jammer Circuit Diagram
