Build a 5 Zone alarm Circuit Diagram

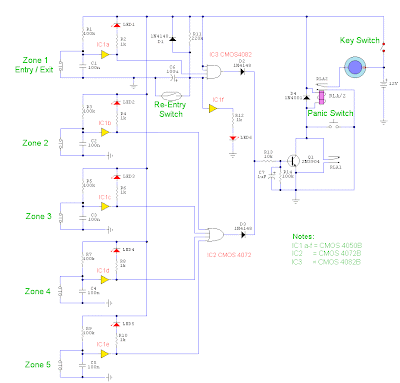

This is a complete alarm system with 5 independent zonessuitable for a small office or home environment. It uses just 3CM IC`s and features a timed entry / exit zone, 4 immediatezones and a panic button. There are indicators for each zone a“system armed” indicator. The schematic is as follows:

5 Zone alarm Circuit Diagram

5 Zone alarm Circuit Diagram




Circuit Notes:
Each zone uses a normally closed contact. These can be microswitches or standard alarm contacts (usually reed switches).Suitable switches can be bought from alarm shops and concealed indoor frames, or window ledges.Zone 1 is a timed zone which must be used as the entry andexit point of the building. Zones 2 – 5 are immediate zones,which will trigger the alarm with no delay. Some RF immunity isprovided for long wiring runs by the input capacitors, C1-C5. C7and R14 also form a transient suppresser. The key switch acts asthe Set/Unset and Reset switch. For good security thisshould be the metal type with a key.

Operation:
