Build a 20W Bridge Audio Amplifier


Specifications:
  • 20W Bridge Audio Amplifier kit, based on the TDA2005 IC, a class B dual audio amplifier, specifically designed for car radio applications etc.
  • Power supply - 18 VDC
  • Output power - 20 W, 4 Ω
  • IC built in Thermal Shut-down, Load dump voltage surge protected
  • Terminal pins for connecting left and right audio signal inputs
  • Relimate Connector for connecting Potentiometer (POT) for volume adjustment
  • Power Battery Terminal (PBT) for easy power supply and speaker connection
  • Power-On LED indicator
  • Heatsink for IC
  • Four mounting holes of 3.2 mm each with nut and stud
  • PCB dimensions 63 mm x 65 mm

Schematic:

Build a 20W Bridge Audio Amplifier


Pcb

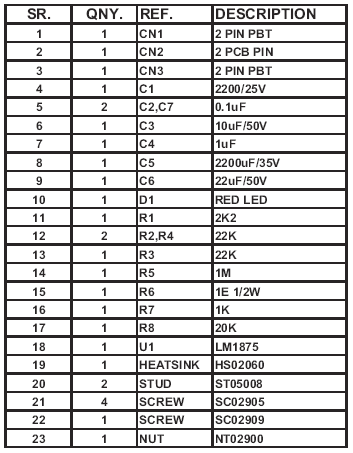

Parts List
